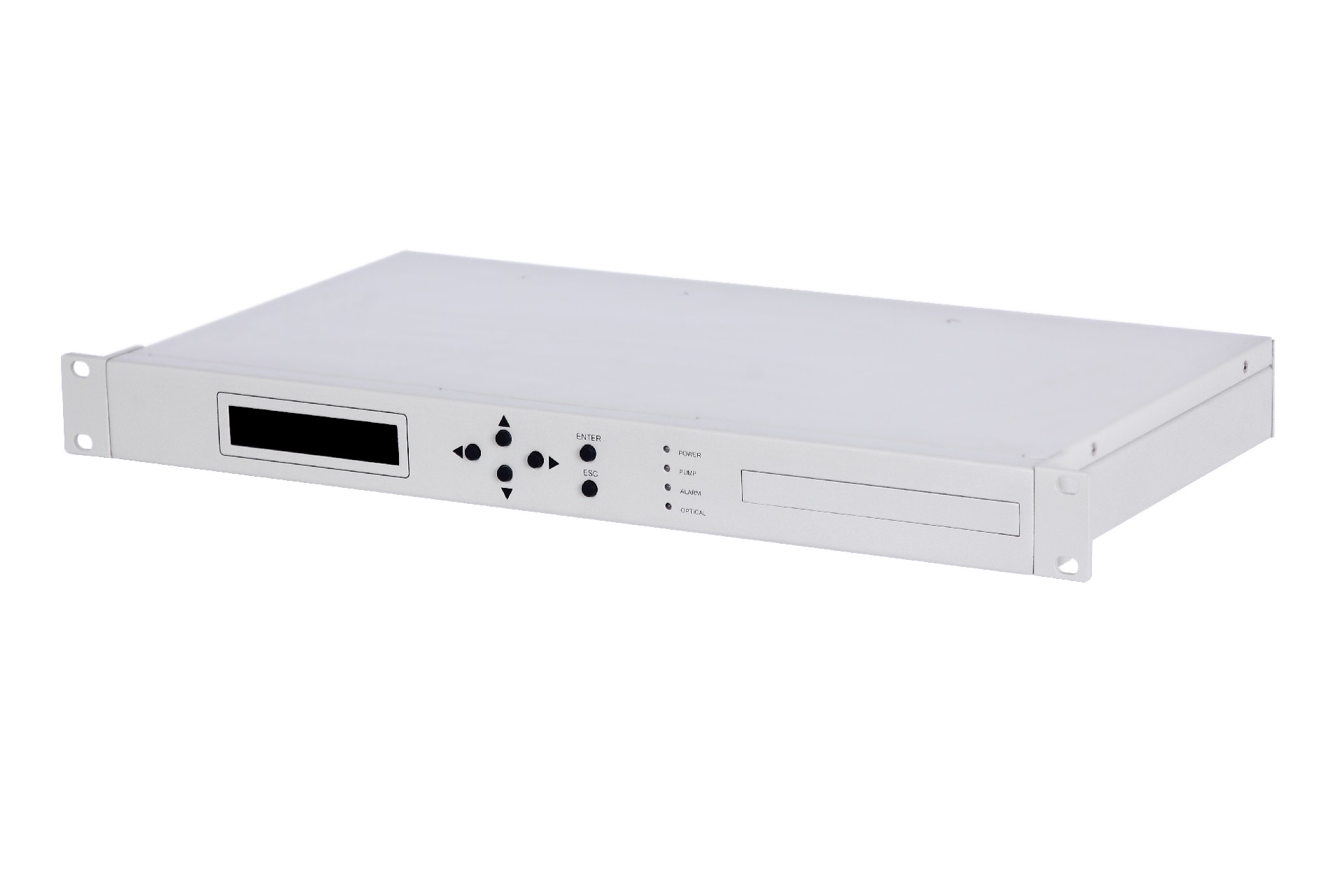

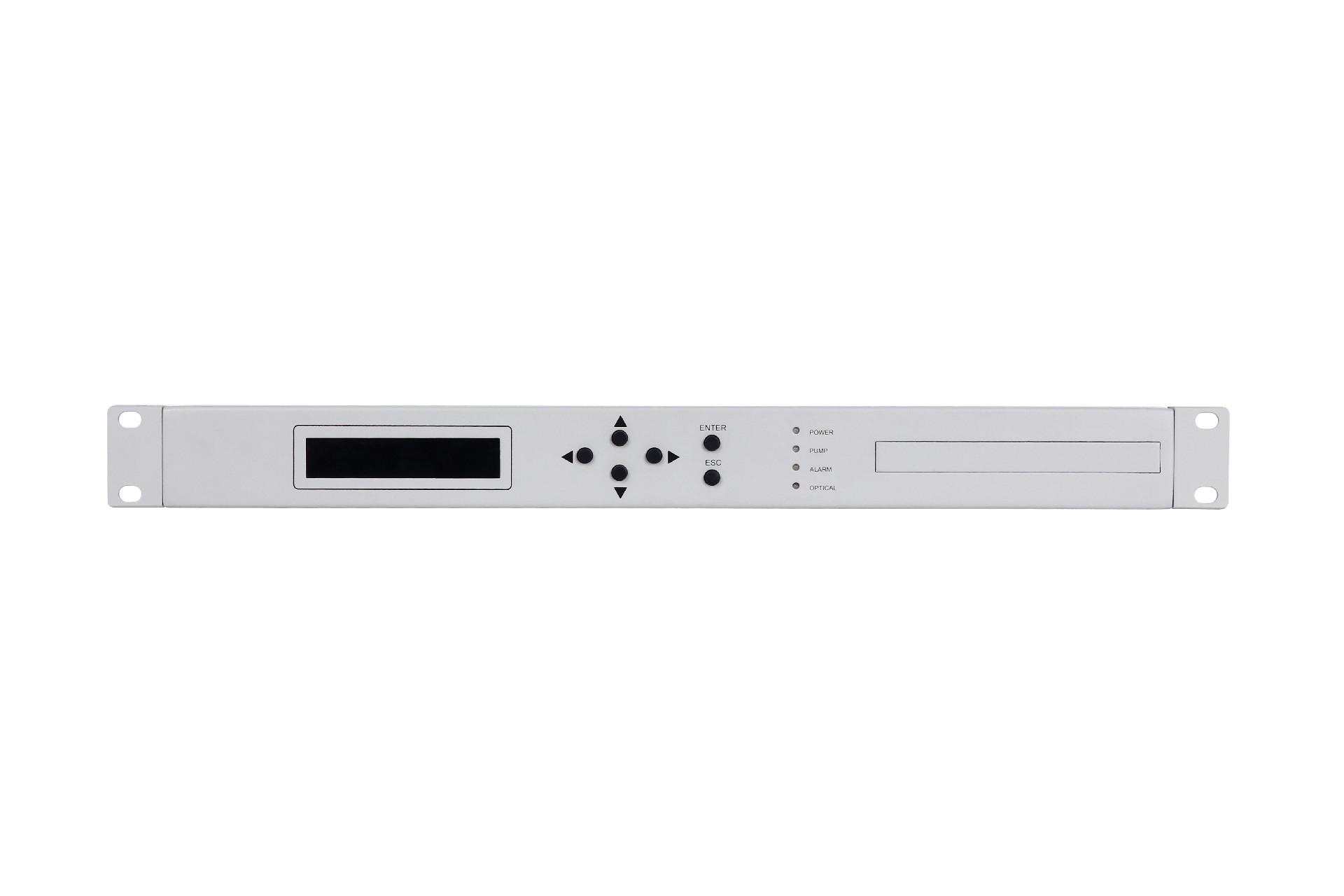

CFTX-1U-DWDM-PA

Product introductionFiber amplifier technology is in the fiber core of the doped can produce laser rare earth elements, through the laser to provide DC excitation, so that through the optical signal to be amplified. The traditional optical fiber transmission system is the use of optical electrical o

產(chǎn)品詳情
資料下載

Product introduction

Fiber amplifier technology is in the fiber core of the doped can produce laser rare earth elements, through the laser to provide DC excitation, so that through the optical signal to be amplified. The traditional optical fiber transmission system is the use of optical electrical optical regenerative repeater, the relay equipment affect the system's stability and reliability, to get rid of the conversion process directly in light path to amplify the signal transmission, instead of the regenerative repeater with an all-optical transmission repeater. For the equipment of erbium doped fiber amplifier (EDFA), praseodymium doped fiber amplifier (PDFA) and Nb doped fiber amplifier (NDFA). At present, the optical amplification technology is mainly used EDFA.

Features

High output power

Output power tunable

Low NF

RS-485、RS-232 network interfac

Multi power supply (Rack Mount);

AC：220V-110V；DC：-48V

Application

Access network

IP ATM SDH Network

Digital communication network

DWDM system

Specification

Product Name		Preapmlifier（PA）
Parameter		Min	Typ	Max	Unit
Operating Wavelength	16 Channel	1546	1550	1561	nm
	32 Channel	1535		1562
	48 Channel	1528		1568
Input powe		-35		-25	dBm
Gain		14	25	33	dBm
Output power				13	dBm
Input optical power threshold		-30		-40	dBm
Noise figure			5.0		dB
Gain flatness			0.6	1.5	dB
Input/output Isolation		30			dB
Output Pump leakage				-30	dBm
Input/output return loss		45			dB
polarization dependent loss				0.5	dB
Polarization mode dispersion				0.5	ps
Operating Temperature		-5		55	℃
Humidity		5		95	%
Storage Temperature		-40		85	℃
Power consumption				30	W
Power		-48V DC AND 220V AC			V
Interface		FC/UPC or other
Dimension		(W x L x H) 482.6x245x43.6			mm

Ordering inforamtion

Product

Package

Input

Power

Output Power

Power

Supply 1

Power

Supply 2

Connector

network management

EDFA

1:1U Chassis

2：BA

3：LA

4：PA

010:-10dBm

…

24:24dBm

1:110VAC

2:220VAC

3:110~220VAC

4:-48VDC

9:other

1:110VAC

2:220VAC

3:110~220VAC

4:-48VDC

9:Other

0：none

1;SC/PC

3:FC/PC

5:LC/PC

9:other

1：with

2：without
